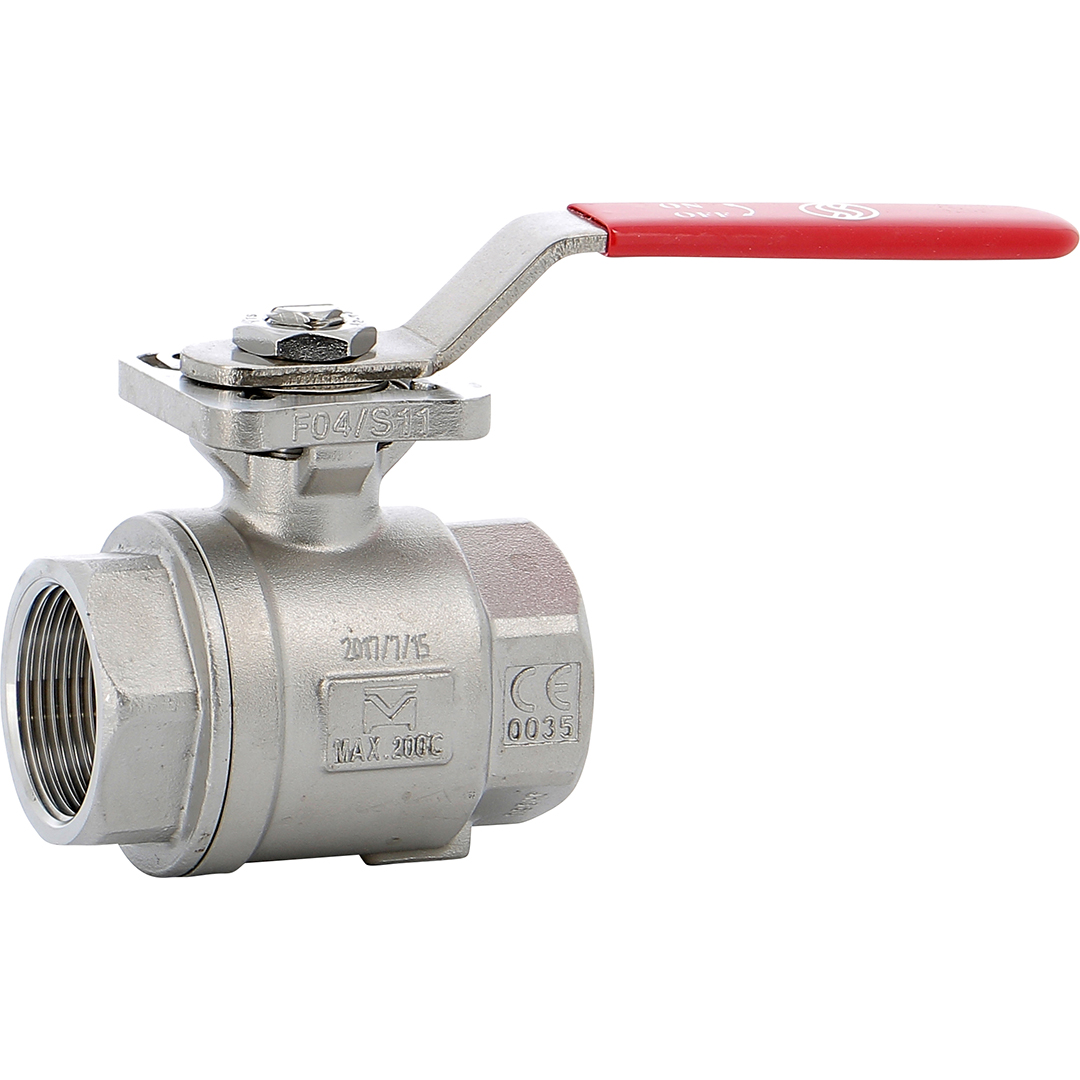

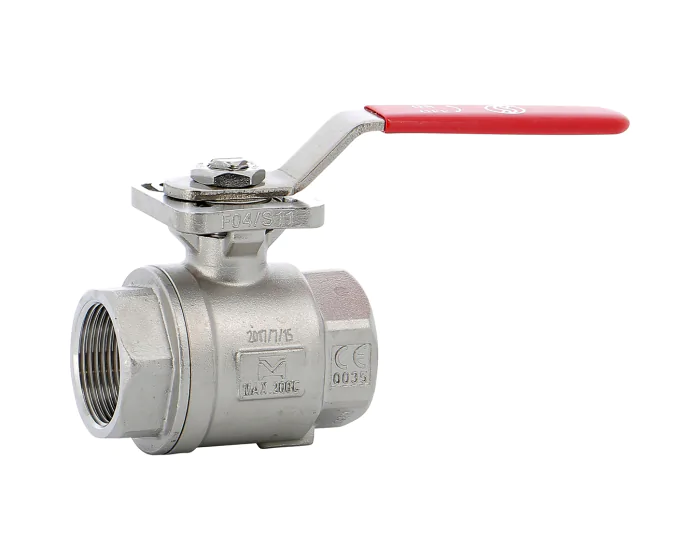

The 733 series ball valve, 2-piece body, actuation with ISO pad 5211, ACS certified, double shaft tightness PTFE+FKM, for drinking water, chemical industries, compressed air
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ISO 7-1 Rp |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 5 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 750.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Kv (m³/h) | 34.0 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2'' | 733004 | S1006458 |
€26.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4'' | 733005 | S1006459 |
€31.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1'' | 733006 | S1006460 |
€47.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/4 | 733007 | S1006461 |
€66.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/2 | 733008 | S1006462 |
€105.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2'' | 733009 | S1006463 |
€145.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2''1/2 | 733010 | S1006464 |
€282.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3'' | 733011 | S1006465 |
€338.61
(excl. btw)
|
add to cart |
